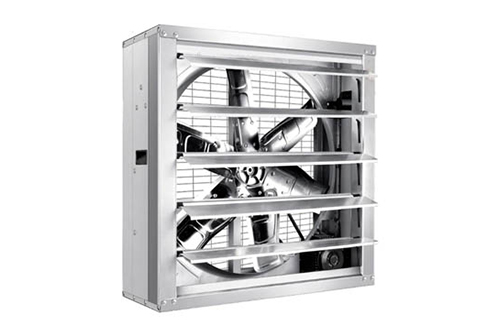

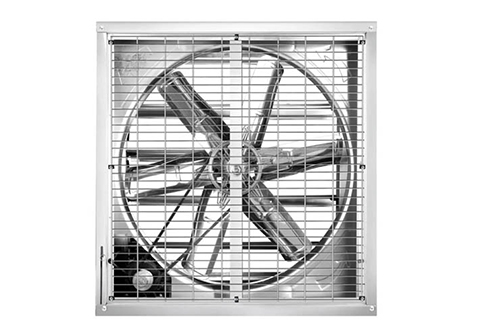

Industrial hammer exhaust fans are best suitable for ventilation of manufacturing industries, these fans are made of GI body and stainles steel blades, it has very light weight and robust body construction, it has gravity louvers on its back side which protects dust and bird entry inside the plant, S.S. INSULATTION AND EQUIPMENTS INDIA PV. LTD. is the manufacturer of these fans and have variety of madels suitable to your requirement
| INDUSTRIAL HAMMER EXHAUST FAN | ||||||||
| SRN | Model | Size (mm) | Diameter (inch) | Air Volume (m3/h) | Noise (dB) | Fan Speed (rpm) | Motor Power (kw) | Rated Voltage |
| 1 | SSIAEIPL-1750 | 1750 X 1750 X 450 | 62 | 68000 | 70 | 400 | 18-4 | 380V |
| 2 | SSIAEIPL-1530 | 1530 X 1530 X 400 | 52 | 57000 | 70 | 450 | 1.5-4 | 380V |
| 3 | SSIAEIPL-1380 | 1380 X 1380 X 400 | 50 | 44500 | 65 | 450 | 1.1-4 | 380V |
| 4 | SSIAEIPL-1220 | 1220 X 1220 X400 | 40 | 37000 | 60 | 450 | 0.75-4 | 380V |
| 5 | SSIAEIPL-1100 | 1100 X 1100 X 400 | 36 | 34000 | 60 | 450 | 0.55-4 | 380V |
| 6 | SSIAEIPL-1060 | 1060 X 1060 X 400 | 36 | 32000 | 60 | 450 | 0.55-4 | 380V |
| 7 | SSIAEIPL-1000 | 1000 X 1000 X 400 | 32 | 30000 | 60 | 450 | 0.55-4 | 380V |
| 8 | SSIAEIPL-900 | 900 X 900 X 400 | 30 | 27000 | 55 | 450 | 0.37-4 | 380V |
| 9 | SSIAEIPL-800 | 800 X 800 X 300 | 24 | 13000 | 60 | 960 | 0.25-6 | 380V |
| 10 | SSIAEIPL-700 | 700 X 700 X 300 | 22 | 10000 | 60 | 960 | 0.25-6 | 380V |
| 11 | SSIAEIPL-600 | 600 X 600 X 300 | 20 | 8000 | 55 | 960 | 0.25-6 | 380V |
| 12 | SSIAEIPL-500 | 500 X 500 X 300 | 16 | 5000 | 55 | 1400 | 0.25-4 | 380V |
| 13 | SSIAEIPL-400 | 400 X 400 X 300 | 12 | 2500 | 55 | 1400 | 0.25-4 | 380V |
| 14 | SSIAEIPL-300 | 300 X 300 X 200 | 8 | 1500 | 50 | 2200 | 0.15-4 | 220V |
| 15 | SSIAEIPL-200 | 200 X 200 X 170 | 6 | 1000 | <60< /span> | 2200 | 0.15-4 | 220V |
