Here's how it works:

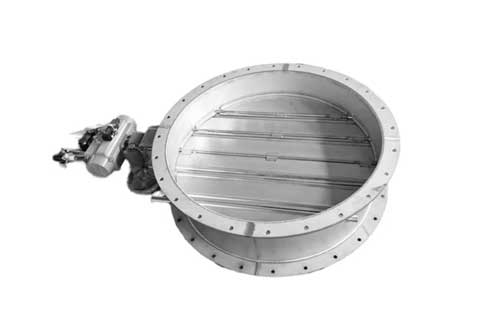

• 1. The valve consists of a circular body with a rotating disc or vane inside.
• 2. The disc is connected to a shaft that passes through the valve body.
• 3. When the shaft is turned, the disc rotates, opening or closing the valve.
• 4. As the disc rotates, it creates a variable orifice that controls the flow of fluid through the valve.

Type of butterfly damper valve:

• 1. Pneumatic butterfly damper valve
• 2. Electric Butterfly Damper valve

Butterfly damper valves are commonly used in various industries, including:

• 1. HVAC (heating, ventilation, and air conditioning) systems to control airflow.
• 2. Power plants to regulate steam flow.
• 3. Chemical processing plants to control fluid flow.
• 4. Oil and gas pipelines to regulate flow rates.

The advantages of butterfly damper valves include:

• 1. Compact design
• 2. Low maintenance
• 3. Easy operation
• 4. High flow capacity

However, they also have some limitations, such as:

• 1. Limited pressure rating
• 2. Potential for leakage
• 3. Requires regular lubrication

Overall, butterfly damper valves are a reliable and efficient solution for controlling fluid flow in various industrial applications.
